Bar And Pipes Storage Racks, Tube Storage Racks, Stackable Pipe Racks

Workers have to load, unload and stock lengthy industrial materials like bars, pipes, rods, tubes.

You need to maximize the value of every square inch of space in your facilities.

To achieve this, your facility needs bar and pipes storage racks that are efficient, economical, durable, proven, and designed for maximum safety.

Why are Bar and Pipes Storage Racks Needed?

  • Warehousing is all about efficient space utilization and cost-effective materials handling.
  • If bundles of pipes or rods are stacked on the floor within a factory in an unorganized manner, it causes the entire stack to collapse. As a result, the materials are seriously damaged and people who are handling the material are also injured.
  • Tube storage racks provide storage flexibility.
  • These types of industrial storage racks keep materials from falling off and avoid damage to material and also safety to men handling it.

The Benefits of Bar and Pipes Storage Racks :

Stackable pipe racks maximizes your facility’s storage space and protects lengthy products.
Manage inventory, enhance the flow of materials, increase accessibility, lower costs, and boost efficiency.

  • Sturdy and compact storage systems to hold bars, pipes, rods, tubes and other long products
  • Vast quantities of long products stored efficiently and securely
  • Floor space freed up extensively
  • Quick and direct access to material
  • Simple and easy handling
  • Easily ex-tractable system
  • Storage of materials with excess lengths possible

Features of Bar and Pipes Storage Racks :

  • Base legs provide stability and keep the products off the floor.
  • Arms and bases are designed to bolt on either or both sides of the bay for conversion from single to double-sided units.
  • Back to back loads need not be identical weight or dimension.
  • The arms are especially suited for improving work area appearance and organization of lengthy and tubular materials.

Our Bar and Pipes Storage Racks are available in a wide range of options in single and double sided configurations with loading capacity ranging from 1.4 to 16 tons and 2.1 to 32 tons respectively. They are suited for the storage of any lengthy goods, whatever the size or weight of the products. Length of 25 metres and above possible.



MH&More Xtreme K-Roller Roll Out Double-Sided
5 Bays / 12 mtrs
32 tons total capacity

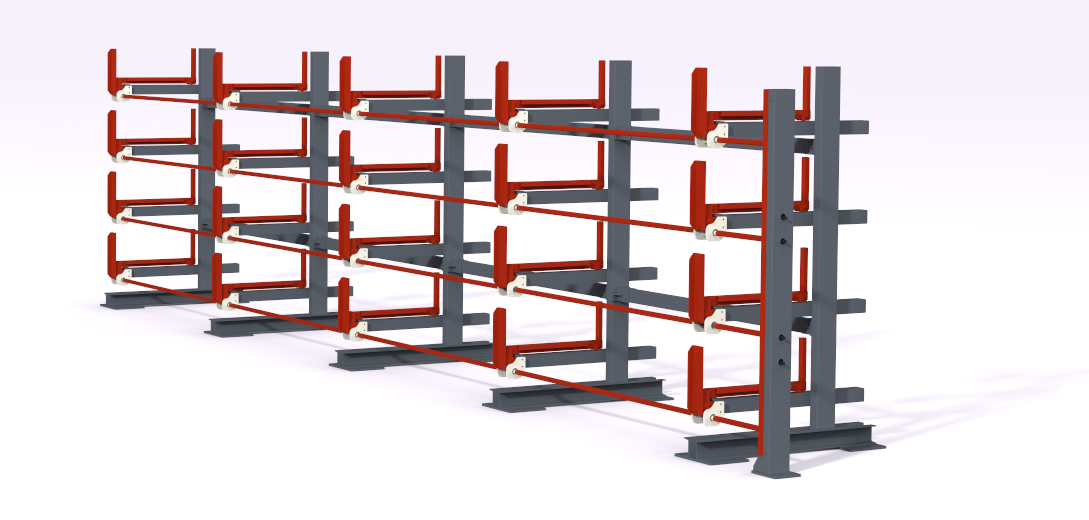

MH&More Xtreme K-Roller Roll Out Single-Sided
5 Bays / 12 mtrs
16 tons total capacity

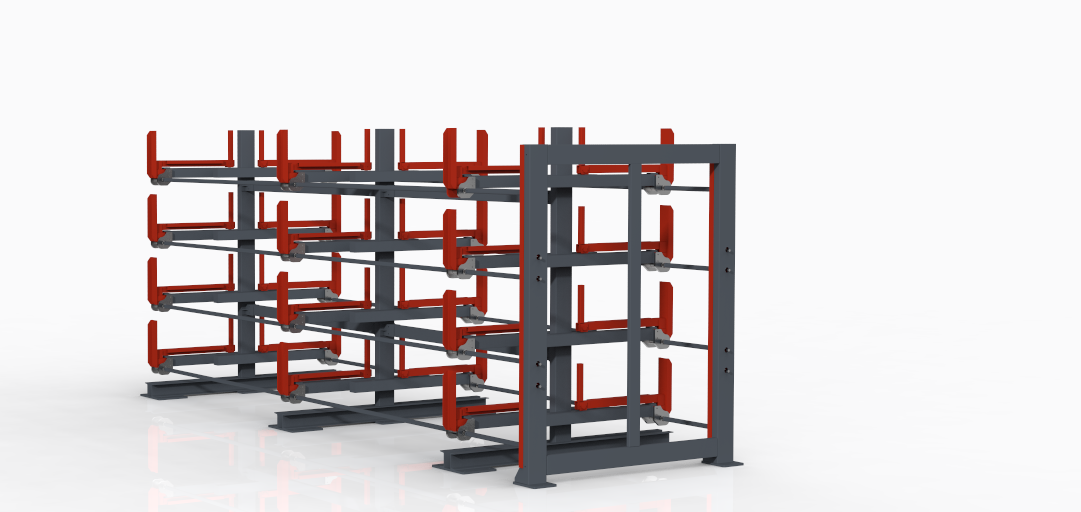

MH&More Mighty K-Roller Roll Out Double-Sided
3 Bays / 6 mtrs
24 tons total capacity

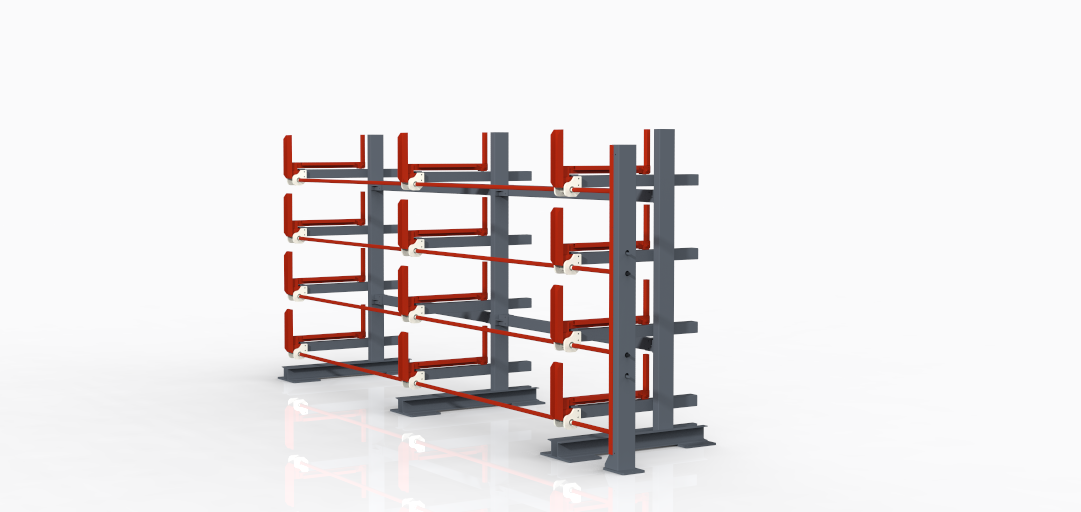

MH&More Mighty K-Roller Roll Out Single-Sided
3 Bays / 6 mtrs
12 tons total capacity

Get in touch with us to learn more about our bar stock storage racks.



Product Name Roll Out Double-Sided Bar & Pipes Storage Racks

Model No.

MHM Xtreme K-Roller Roll Out 58-12

MHM Xtreme K-Roller Roll Out 48-08

MHM Mighty K-Roller Roll Out 38-06

MHM Mighty K-Roller Roll Out 28-35

MHM Bravo K-Roller Roll Out 38-06

MHM Bravo K-Roller Roll Out 28-35

MHM Marvel K-Roller Roll Out 26-06

MHM Marvel K-Roller Roll Out 26-35

Primary Industry Application

Bar, Pipes, Rods & Tubes storage

Bar, Pipes, Rods & Tubes storage

Bar, Pipes, Rods & Tubes storage

Bar, Pipes, Rods & Tubes storage

Bar, Pipes, Rods & Tubes storage

Bar, Pipes, Rods & Tubes storage

Bar, Pipes, Rods & Tubes storage

Bar, Pipes, Rods & Tubes storage

No. of Bays

5

4

3

2

3

2

2

2

No. of Arms on each Bay

8

8

8

8

8

8

6

6

Loading Capacity per Arm

4 tons

3.5 tons

3 tons

2.5 tons

1.5 tons

1.25 tons

0.5 tons

0.35 tons

Total Loading Capacity

32 tons

28 tons

24 tons

20 tons

12 tons

10 tons

3 tons

2.1 tons

Length

12 mtrs

8 mtrs

6 mtrs

3.5 mtrs

6 mtrs

3.5 mtrs

6 mtrs

3.5 mtrs

Usable Shelf (H x W)

300 x 800 mm

300 x 800 mm

300 x 800 mm

300 x 800 mm

300 x 800 mm

300 x 800 mm

300 x 800 mm

300 x 800 mm



Product Name Roll Out Single-Sided Bar & Pipes Storage Racks

Model No.

MHM Xtreme K-Roller Roll Out 58-12

MHM Xtreme K-Roller Roll Out 48-08

MHM Mighty K-Roller Roll Out 38-06

MHM Mighty K-Roller Roll Out 28-35

MHM Bravo K-Roller Roll Out 38-06

MHM Bravo K-Roller Roll Out 28-35

MHM Marvel K-Roller Roll Out 26-06

MHM Marvel K-Roller Roll Out 26-35

Primary Industry Application

Bar, Pipes, Rods & Tubes storage

Bar, Pipes, Rods & Tubes storage

Bar, Pipes, Rods & Tubes storage

Bar, Pipes, Rods & Tubes storage

Bar, Pipes, Rods & Tubes storage

Bar, Pipes, Rods & Tubes storage

Bar, Pipes, Rods & Tubes storage

Bar, Pipes, Rods & Tubes storage

No. of Bays

5

4

3

2

3

2

2

2

No. of Arms on each Bay

8

8

8

8

8

8

6

6

Loading Capacity per Arm

4 tons

3.5 tons

3 tons

2.5 tons

1.5 tons

1.25 tons

0.5 tons

0.35 tons

Total Loading Capacity

16 tons

14 tons

12 tons

10 tons

6 tons

5 tons

2 tons

1.4 tons

Length

12 mtrs

8 mtrs

6 mtrs

3.5 mtrs

6 mtrs

3.5 mtrs

6 mtrs

3.5 mtrs

Usable Shelf (H x W)

300 x 800 mm

300 x 800 mm

300 x 800 mm

300 x 800 mm

300 x 800 mm

300 x 800 mm

300 x 800 mm

300 x 800 mm



Note: Storage of lengthy goods like bars, rods, tubes, steel beams, profiles and flats can be easily stored. Length of 25 metres and above possible.
