Sheet Storage Racks
One of the key concerns in any metal processing or fabrication facility is ensuring that sheet metal inventory remains in perfect condition until it enters the production process. Sheets stored flat in stacks are prone to bending under their own weight, surface scratching during retrieval, edge damage from repeated handling, and corrosion when moisture is trapped between stacked layers. In high-throughput environments - press shops, laser cutting facilities, stamping plants, even minor sheet damage translates directly into scrap losses and production delays.
Sheet Storage Racks – Tough, Durable and Long-Lasting!

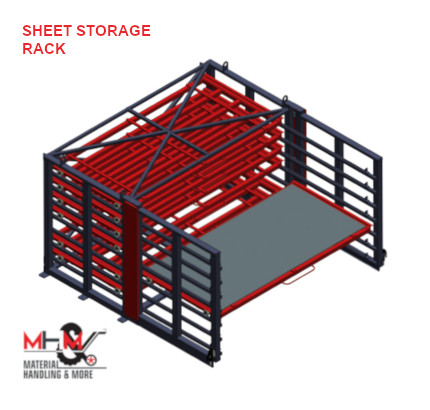

MH&More sheet storage racks are engineered to store sheets made from aluminium, stainless steel, mild steel, and other metals. Whether you need an aluminium sheet storage rack for a lightweight fabrication shop or a heavy duty sheet storage rack for a high-volume stamping plant, each model is built with a robust steel structure, smooth powder-coated finish, and the load-bearing capacity required for industrial use.
The compact height and width of each unit allows metal sheets of varying sizes and weights to be stored easily. Both metallic and non-metallic sheets can be accommodated. Trays open quickly and safely, preventing injury and protecting sheet surfaces during loading and unloading.
Benefits of Sheet Storage Racks:
MH&More Sheet Storage Rack is offered in models of seven, five and three trays; hence you can choose a model that is suitable for your specific usage needs. It is a must for any production facility as it can be used to keep large, medium stocks of metal sheets intact till they have been put into the production process. It is a cost effective means of keeping metal sheets in stock and maintains them in their original condition till they are sent to the manufacturing unit.
All MH&More sheet storage rack models are available in standard configurations as listed below. Dimensions are shown as Width × Length in metres. All capacity figures are shown in tonnes. The Reinforced Roof (RR) column indicates the additional load capacity of the top deck when the reinforced roof option is specified. Contact MH&More with your sheet size, weight, and quantity requirements, our team will recommend the right model from the BRAVO, NEO, MIGHTY, MAXIM, or XTREME series.
|
Product Code / Model No. |
Sheet Dimensions |
No. of Trays |
Loading Capacity |
Total Tray Loading |
Reinforced Roof (RR)* |
Total System Capacity |
|

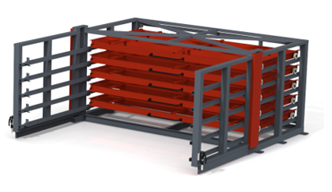

AN-5096 / BRAVO 1225-5-15 |
1.2 x 2.5 |
5 |
3 |
15 |
3 |
18 |
|
AN-5103 / BRAVO 1530-5-15 |
1.5 x 3.0 |
5 |
3 |
15 |
3 |
18 |
|
AN-5134 / NEO 1225-6-18 |
1.2 x 2.5 |
6 |
3 |
18 |
3 |
21 |
|
AN-5126 / NEO 1530-6-18 |
1.5 x 3.0 |
6 |
3 |
18 |
3 |
21 |
|
AN-5110 / MIGHTY 1225-7-21 |
1.2 x 2.5 |
7 |
3 |
21 |
3 |
24 |
|
AN-5275 / MIGHTY+ 1225-9-27 |
1.2 x 2.5 |
9 |
3 |
27 |
3 |
30 |
|
AN-5088 / MIGHTY 1530-7-21 |
1.5 x 3.0 |
7 |
3 |
21 |
3 |
24 |
|
AN-5254 / MIGHTY+ 1530-9-27 |
1.5 x 3.0 |
9 |
3 |
27 |
3 |
30 |
|
AN-5064 / MAXIM 1540-7-21 |
1.5 x 4.0 |
7 |
3 |
21 |
3 |
24 |
|
AN-5023 / MAXIM 2040-7-21 |
2.0 x 4.0 |
7 |
3 |
21 |
3 |
24 |
|

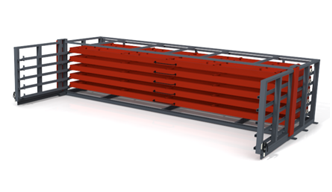

AN-5038 / XTREME 1560-6-30 |
1.5 x 6.0 |
6 |
5 |
30 |
5 |
35 |
|
AN-5283 / XTREME 1563-6-30 |
1.5 x 6.3 |
6 |
5 |
30 |
5 |
35 |
|
AN-5133 / XTREME 2060-6-30 |
2.0 x 6.0 |
6 |
5 |
30 |
5 |
35 |
|
AN-5269 / XTREME 2063-6-30 |
2.0 x 6.3 |
6 |
5 |
30 |
5 |
35 |
* Optional Reinforced Roof can be added in place of Standard Top Frame.
Note:
- Customizable Sheet Storage Rack can be tailor made as per specific requirements.
- Drawer type Storage Systems for Roller Shaft, Tools & Axles can be customized as per requirements.
